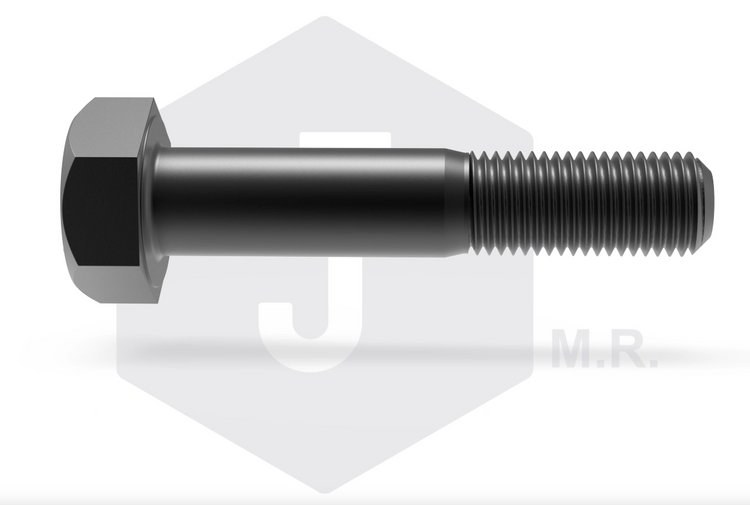

Understanding ASTM A193 Grade B7: What It Means and Why It Matters
Share
ASTM A193 Grade B7 is one of the most commonly specified materials for high-strength bolts used in heavy-duty applications. At JM USA, we manufacture B7 fasteners with full traceability and certify them according to strict industry standards. But what does “Grade B7” really mean—and how do you know if it’s right for your application?
What Is ASTM A193 Grade B7?
ASTM A193 is a specification issued by ASTM International that covers alloy steel and stainless steel fasteners intended for high-temperature or high-pressure service. Grade B7 specifically refers to fasteners made from a chromium-molybdenum alloy steel (commonly 4140 or 4142), which is heat-treated for increased strength and toughness.
B7 is widely used in petrochemical, power generation, and structural applications where strength and temperature resistance are critical.
Key Chemical Requirements
Typical chemical composition of B7 steel includes:
- Carbon: 0.38–0.48%
- Manganese: 0.75–1.00%
- Chromium: 0.80–1.10%
- Molybdenum: 0.15–0.25%
- Silicon, Phosphorus, Sulfur within defined limits
JM’s heat analysis and test reports (MTRs) confirm conformance to these requirements for every batch we produce.
Mechanical Properties of B7 Fasteners
According to ASTM A193/A193M, Grade B7 fasteners must meet the following minimum values:
- Tensile Strength: 125 ksi (min)
- Yield Strength: 105 ksi (min)
- Hardness: 35 HRC max (equivalent to approx. 321 HB)
- Elongation: 16% min in 4D
- Reduction of Area: 50% min
JM provides verified mechanical testing under ASTM F606/F606M standards, including full-size tensile testing, hardness checks, and wedge tests.
Real-World Example: JM Quality In Action
In one of our recent inspection certificates, a 1-1/4" x 12" B7 heavy hex screw tested with:
- Tensile Strength: 155.83 ksi
- Core Hardness: 33 HRC
- Elongation: 30%
- Reduction of Area: 33%
These values exceed ASTM minimums, reflecting both material quality and manufacturing control.
Common Applications
B7 bolts are often used in:
- Pressure vessels and piping systems
- Petrochemical and refinery equipment
- Infrastructure and steel structures
- Heavy machinery bolting
- High-strength structural joints
Because they are quenched and tempered, B7 bolts perform reliably in environments up to 800°F (427°C), with appropriate allowances for temperature derating.
Why Choose JM USA for B7 Fasteners?
- Full traceability and certified MTRs
- Forged and heat-treated in-house
- Manufactured to ASTM A193, F606, F788
- Available in custom lengths up to 48”
- ISO 9001:2015 quality system
